Hydrogen Sensor

Datasheet

Short Description

Hydrogen Sensor

Identification number (GSIN)

SM_H2_LC

Replaces old GSIN

SM_H2

Valid from

2020-09-10

Customs Tariff Code (HS-Code)

90251920

Length[mm]

160

Width[mm]

105

Height[mm]

110

Weight[kg]

0.256

Gtin13

SM_H2_LC

Full Description

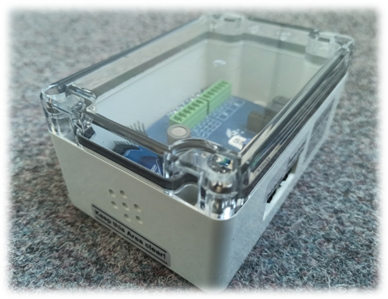

Hydrogen Sensor SM_H2_LC
Hydrogen gas sensor for battery rooms.

It is a complete monitoring system for H2 gas detection with visual display on the device and audible alarm buzzer.
Including connection cable 5 meter/196,850 in The SM_H2_LC can work as standalone device and has a dry contact
output for the connection to the CS141 with CON_AUX4/ CON_R_AUX4, CS141, BACS with a SENSORMANAGER or
to the SITEMANAGER 4/5 and SITEMONITOR alarm inputs - or any other alarm input orf 3rd party devices.
Through CS141/BACS/ SITEMANAGER/SITEMONITOR, the user may trigger a fan/air conditioner to start and reduce
the H2 concentration or trigger any other alarm device/service personnel through email, SMS, EmailTraps,
Modbus/Profibus/LONbus/BACnet etc.

Input: 9.12V (stabilized), operating -0°C-40°C with up to 90% humidity non condensing, visual (strobe) alarm.
relay outputs, measurements (100 % LEL = 4Vol%) concentration pre-alarm at 20% H2 / alarm at 40% H2 concentration
