Accessories for your BACS system

The BACS options add several practical add-on features to a BACS system with which you can improve the overall performance of your system.

With the BACS options, you can directly activate air conditioning systems, monitor the quality of the charging current, couple contact-controlled feedback from other systems to BACS control mechanisms and much more.

BACS Toolkit 12 Volt Version

Ord. No.: BACSTK4_12V

For 12Volt version with BACS C20 spare parts. Consisting of all items/spare parts required for a BACS service field engineer.

Content: BACSKIT_B4, BUS_CONV_5, BCII_SPLITT, BACS_PEN3, BUSC_CABLE, BACS_MNT,
BACS_MNT_II, BACS_TPAD2, , BACS_TPAD3, BACS_TV3, FUSE CS141/BACS WEBMANAGER, RJ 10 Crimping Tool, BACS_STRIP3, BACS_STRIP4, BACS_STRIP5, BACSC20 Rev 3.x (10x), B4BCRJ10025 (5x), B4BCRJ1004 (5x), B4BCRJ1007 (5x), B4BCRJ1010 (2x), B4BCRJ1015 (2x), B4BCRJ1030 (2x), B4BCRJ1050 (1x), B4BCRJ10200 (20m), BC5-015M5 (2x), BC5-015M6 (2x), BC5-015M8 (2x), BC5-025M5 (4x), BC5-025M6 (4x), BC5-025M8 (4x), BC5-040M5 (4x), BC5-040M6 (4x), BC5-040M8 (4x), BC5-040M10 (2x), BC5-040M12 (2x), BACS_TS1L23 (5x), GEHPUFFER, Label for BACSKIT_B4, Label for BCII_SPLITT, Label for BUS_CONV_5, B2_RJ1010, B2_RJ10COUP, Power supply for CS141 SNMP Adapter (Available with EU, US, UK or AUS power supply).

BACS Toolkit 2-12 Volt Version

Ord. No.: BACSTK4_2-12V

For 2-12Volt version with BACS C20, C30 and C40 spare parts. Consisting of all items/ spare parts required for a BACS service field engineer.

Content: BACSKIT_B4, BUS_CONV_5, BCII_SPLITT, BACS_PEN3, BUSC_CABLE, BACS_MNT,
BACS_MNT_II, BACS_TPAD2, , BACS_TPAD3, BACS_TV3, FUSE CS141/BACS WEBMANAGER, RJ 10 Crimping Tool, BACS_STRIP3, BACS_STRIP4, BACS_STRIP5, BACSC20 Rev 3.x (4x),BACSC30 Rev 3.x (4x), BACSC40 Rev 3.x (4x), B4BCRJ10025 (5x), B4BCRJ1004 (5x), B4BCRJ1007 (5x), B4BCRJ1010 (2x), B4BCRJ1015 (2x), B4BCRJ1030 (2x), B4BCRJ1050 (1x), B4BCRJ10200 (20m), BC5-015M5 (2x), BC5-015M6 (2x), BC5-015M8 (2x), BC5-025M5 (4x), BC5-025M6 (4x), BC5-025M8 (4x), BC5-040M5 (4x), BC5-040M6 (4x), BC5-040M8 (4x), BC5-040M10 (2x), BC5-040M12 (2x), BC4B040M5 (1x), BC4B040M6 (1x), BC4B040M8 (1x), BC4B040M10 (1x), BACS_TS1L23 (5x), GEHPUFFER, Label for BACSKIT_B4, Label for BCII_SPLITT, Label for BCII_SPLITT, Label for BUS_CONV_5, B2_RJ1010, B2_RJ10COUP, Power supply for CS141 SNMP Adapter (Available with EU, US, UK or AUS power supply).

BACS Bus Converter

Ord. No.: BUS_CONV_V

The BACS bus converter serves two purposes: It is the interface with which you can upgrade a CS141 Professional or Modbus to a fully-featured BACS web manager. However, you can also connect the BACS bus converter to a computer and directly access the BACS tools on BACS modules and read them out or program them. Particularly when the BACS web manager is positioned impractically, you can go directly to the BACS modules with the BACS bus converter.

The BACS bus converter is not a stand-alone unit; a PC or CS141 WEBMANAGER is required.

Construction: Conversion and galvanic separation of the BACS battery bus to the BACS WEBMANAGER BUDGET plus real time clock (RTC) timer for the BACS WEBMANAGER.
Power Supply: Stabilized external 12V/2000mA
Number of modules: : Standard Power supply grants power for up to 360 BACS C modules. For up to 510 Modules and sensors, a larger power supply is available.
Dimension: 91,5 x 67 x 25 (W x H x D)

BACS SPLITTING BOX

Ord. No.: BCII_SPLITT

The BACS splitting box is a passive element within the BACS installation and is used to divide the BACS bus into individual segments, which allows for a structured and space-saving installation. Within the BACS web manager, the physical wiring can also be logically divided into battery strings which can be observed and configured accordingly.

Construction: Passive splitter for BACS communication cables, designed to optimize the overall cable lengths and to create an optical pleasant wiring. In addition to the extension of the 2 BACS bus inputs of the BACS CONVERTER.
Power Supply: Passive element, no additional power supply required
Interfaces: : 5* RJ10 for BACS bus cables, 1x RJ10 input connector for BACS bus data input
Dimension: 91,5 x 67 x 25 (W x H x D)

BACS Repeater

Ord. No.: BACS_REP

The longer the cables become, the greater the signal attenuation. If you operate near the limit of the maximum permissible cable lengths, interference may arise from the signal being too highly attenuated as a result of the cable length. The BACS repeater is a module with which you can bridge up to 100m between the BACS bus converter and the first BACS module, a BACS splitting box or between BACS modules. Its purpose is to amplify the incoming signal and pass it on to the BACS bus.

BACS Bus Interface

Ord. No.: GX_R_AUX

The digital BACS bus interface module offers the option of directly interacting with system-related components via zero-potential contacts. Up to 4 GX_R_AUX Bacs bus interface modules can be installed in a BACS system which makes up to 16 inputs and outputs available. The GX_R_AUX is used, for instance, to directly trip battery separators that have to be installed in accordance with several countries’ laws. The GX_R_AUX is supplied with the required operating voltage via the BACS bus and therefore does not require its own power supply unit.

Switch Power Supply TRACOPOWER TCL 024-112 DC

Mounting Kit II
Ord. No.: PSKIT_18

DIN Rail power supply for BACS WEBMANAGER supply directly from the monitored batteries in a 48Volt DC system. Input voltage 18-72Volt DC, Output: 12V 2000mA DC stabilized. 2000mA are available for up to 400 BACS Module and other BACS bus sensors (see datasheet of other BACS sensors for power consumption). Larger power supplies on demand. Included is a connection cable from DIN rail power supply to BACS WEBMANAGER input. Primary fuse between DC supply and batteries are not included.

Switch Power Supply TRACO TPC 030-112

Mounting Kit II
Ord. No.: PSKIT_90

DIN rail power supply for BACS WEBMANAGER supply directly from the monitored batteries in a 90-375 Volt DC system, or 85-264Volt AC system. Input voltage 90-375 volt DC (or 85-264Volt AC), Output: 12V 2200mA DC stabilized. 1960mA are available for up to 392 BACS Module and other BACS bus sensors (see datasheet of other BACS sensors for power consumption). Larger power supplies on demand. Included is a connection cable from DIN rail power supply to BACS WEBMANAGER input. Primary fuse between DC supply and batteries are not included.

BACS Profibus Converter

Ord. No.: BACS_SPI_II

Converter from BACS RS232 COM2 MODBUS to Profibus fieldbus. External DIN rail device, 230V/59Hz-12V 500mA power supply and COM2 MODBUS mini DIN 8 cable included - Wide range input power supply voltage 10-33 VDC, DB-9 fieldbus connector (cable not included). BACS standard Modbus values starting from address 1000 and UPS values starting from address 100 are supported. German and English user documentation.

SENSORMANAGER for BACS

Ord. No.: SENSMCS121

Universal environmental datamanager for up to 8 temperatures, humidities, voltages, etc., up to 4 input alarm contacts, up to 4 output contacts - Optional module BACS WEBMANAGER, connection to COM2.

The SENSORMANAGER expands the BACS features to include external sensors, actuators and offers several options for actively monitoring the entire infrastructure around the UPS solution.

Temperatursensor

Ord. No.: SM_T_COM

The SM_T_COM temperature sensor monitors the temperatures in a UPS system’s operating environment in real time. If the operating conditions reach concerning values, a corresponding alarm or emergency can be triggered.

Measurement Range: -25°C - +100°C, +/- 0,5%
Output Signal: Serial Protocol (2400 Baud)
Power Supply Voltage: 8 - 15V DC
Special Features: Supply via CS121 COM2 port
Connection Cable: DB9 - Mini-DIN, 1.8m, (Included) max. 30m
Dimensions: 70 x 70 x 27 mm (W x L x H)

Combo sensor for temperature und humidity

Ord. No.: SM_T_H_COM

The sensor can be directly connected to the COM2 port on the BACS WEBMANAGER and offers real-time monitoring of the temperature and the relative humidity. This makes it possible to actively monitor the direct environment around the UPS solution.

Measurement Range / Temperature:-25°C - +100°C, +/- 0,5%
Measurement Range / Humidity: 0 - 100% rel. H, +/- 2%
Output Signal: Serial Protocol (2400 Baud)
Power Supply Voltage: 8 - 15V DC
Special Features: Supply via CS121 COM2 port
Connection Cable: DB9 - Mini-DIN, 1.8m, (Included) max. 30m
Dimensions: 70 x 70 x 27 mm (W x L x H)

Hydrogen Sensor

Ord. No.: SM_H2_LC

Hydrogen typically forms as a by-product of the charging process of batteries and is released into the environment via valves or open cases. Since it is much lighter than the surrounding air, it rises and collects on overhangs, in shelves, niches, ceiling areas, etc. As soon as the hydrogen concentration reaches about 4%, an unstable and highly flammable gas mixture will be formed up.Since hydrogen itself is odorless and colorless, you need specialized sensors like the SM_H2_LC require hydrogen sensors with which hydrogen can be detected at an early stage.The hydrogen sensor SM_H2_LC has a two-stage warning system in which the warning levels are triggered independently of one another.When used with the SENSORMANAGER, the SM_H2_LC is placed directly on the digital inputs in order to receive a corresponding warning signal.

Power Supply Voltage: 9 – 112V DC (stabilized)
Current Consumption: ca. 300mA max.
operating temperatur: 0 - 40 C
measurement accuracy: +/- 20% under calibration condotions (20 C, 1013 hPa, hum. 65%)
Max. measurable instantaneous hydrogen concentration: 100% LEL (<1min/30min)

AC & DC Current Sensors

Current sensors for measuring AC and DC charging/discharging simoultaneously at BACS. Diameter 40mm/1.57in.Pluggable system, BACS addressing through DIP SW. The more flexible design allows subsequent installation into existing high voltage AC systems. A hinge allows opening the upper ring to simplify inserting the power cables. Retrofitting with this hall sensor is quick and cost-effective: The fold-out ring makes the installation work easier and extensive conversions unnecessary. Including connection cable RJ12/6_5.

Current sensors can provide a wide range of useful information about the discharging and charging currents within a UPS solution managed by a BACS. These additional sensors can, for instance, check the quality of the current flow: Irregularities in the current flow can indicate hidden defects that can negatively impact secondary batteries.

Ord. No.: SM_CSH50
AC & DC Current Sensor 50A
Ord. No.: SM_CSH200
AC & DC Current Sensor 200A
Ord. No.: SM_CSH400
AC & DC Current Sensor 400A
Ord. No.: SM_CSH1000
AC & DC Current Sensor 1000A
Ord. No.: SM_CSH2000
AC & DC Current Sensor 2000A

BACS Pads and Velcro Strips

BACS modules and temperature sensors are mounted to the battery using Velcro pads. If the BACS modules later have to be replaced or temporarily removed during maintenance work, they can be easily removed and reinstalled without requiring additional adhesives.

Ord. No.: BACS_TPAD
BACS Pads for external temperatur sensor REV 2
Ord. No.: BACS_TPAD2
BACS Pads for external temperatur sensor REV 3
Ord. No.: BACS_TPAD3
BACS Pads for external temperatur sensor REV 3
Ord. No.: BACS_STRIP4
BACS Velcro Strips for BACS modules V3
Ord. No.: BACS_STRIP5
BACS Velcro Strips for BACS modules V3

Mounting Clips

Ord. No.: BACS_MNT

These module clips were specially developed to mount the BACS bus converter or the BACS splitting box to an industrially standardized DIN rail.

This allows for the orderly and space-saving placement of the modules.

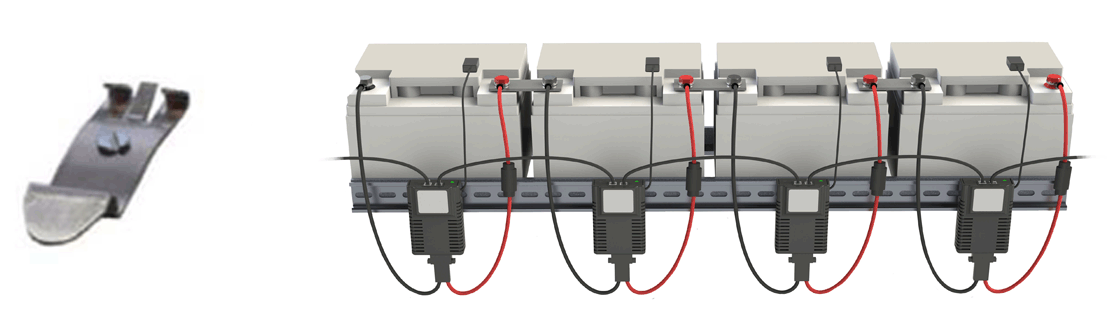

BACS Module Mounting Clip

Ord. No.: BACS_CLIP
BACS Module mounting clip for DIN rails.

Do you need additional accessories?

In conjunction with the SENSORMANAGER, you can integrate a wide range of add-on modules, sensors and actuators from third-party suppliers thanks to the open interfaces.

Contact us and together we will find a way to implement your customized configuration!
